HDMI Repeater Unit with Ethernet Switch combines the video switch and video splitter with bi-directional IR extension, Serial extension (DB9), and IR/Serial control, EVBMN-1492X
EVBMN-1492X, HDMI Repeater Unit with Ethernet Switch, combines the video switch and video splitter features with bi-directional IR extension, Serial extension (DB9), and IR/Serial (RJ11) control function and can transmit full uncompressed HDMI over CAT5e / 6 cable of up to 100 meters @1080p.
HDMI repeater unit with Ethernet Switch, EVBMN-1492X, allows users to switch between 4 video sources (Local HDMI x3+ RJ45 x1) and then delivers the selected video stream to local (Repeater) and remote side (Rx). The “input auto detecting” function always routes the last connecting stream (as first priority) to the output(s). EVBMN-1492X provides 3 extra modes for input source selection including Manual mode, Auto mode, and Priority mode.

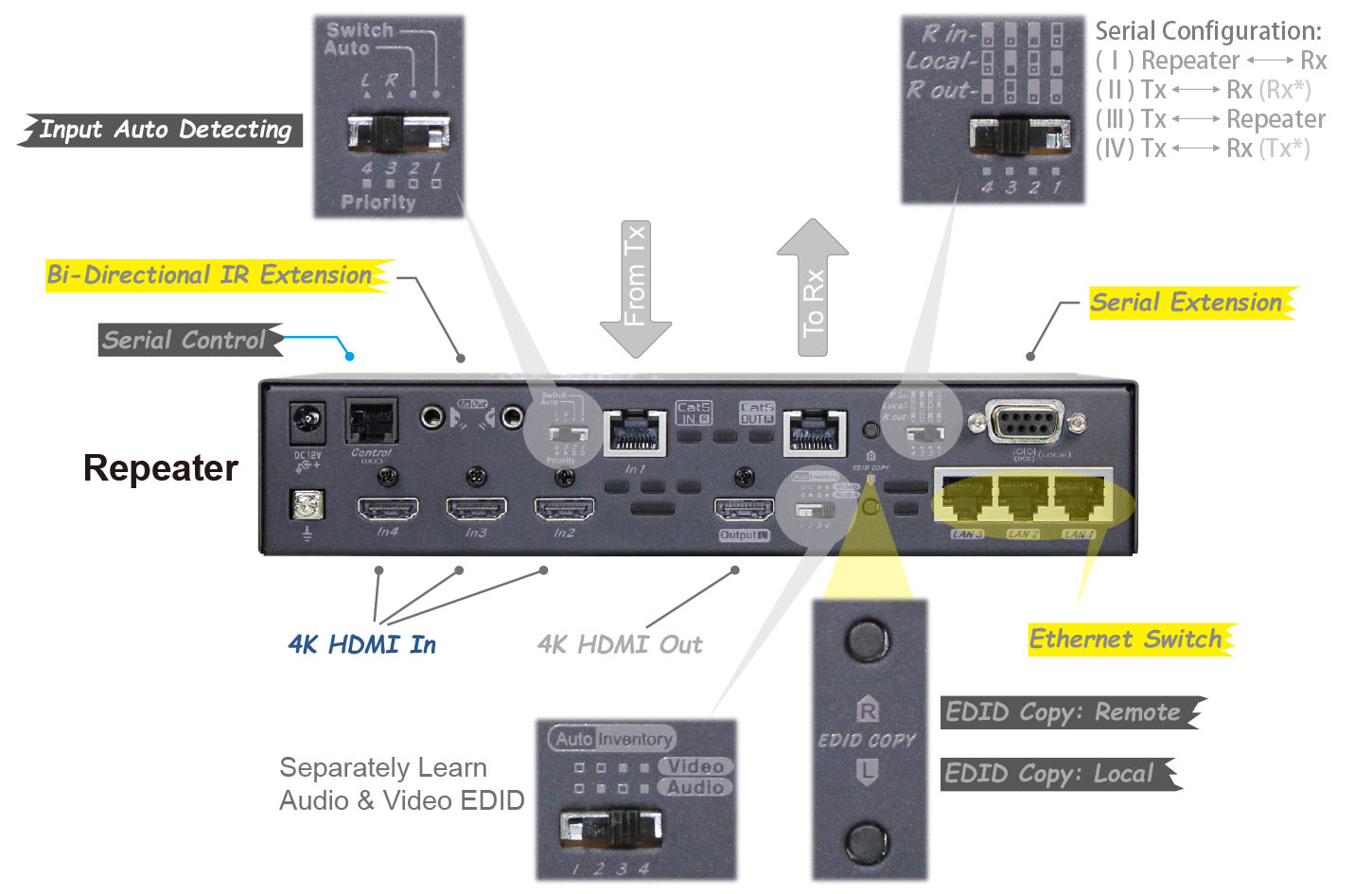

The input sources selection can be carried out thru the slide switch on the rear panel:
• Switch mode: the input sources can be selected thru on-panel buttons, Serial or IR remote control.
• Auto mode: the last inserted source is automatically selected.
• Priority mode: Input source selected based on the priority level.
The LAN extra function of Rextron HDBaseT HDMI Video Extender, 100BaseT Ethernet Pass-Thru, simultaneously distributes Video and Ethernet streams among the connecting system of Transmitter and Receiver unit via a single CAT.x cable connection.
The repeater unit EVBMN-1492X provides comprehensive EDID management, such as Auto Learning mode, factory default and Copy mode, separately learning Audio and Video EDID to ensure that every AV source is displayed at the optimal resolution and format without any compatibility issue. It also enables users to copy or learn EDIDs from the monitor(s) (Local or Remote side) via rear panel EDID button pressing.
EVBMN-1492X supports various ways of control that can be done thru front-panel buttons, Serial or IR remote control. The Serial control, built-in RJ11 serial interface, provides users easy and friendly operation. There’s also an IR sensor window at the front panel designed with great aesthetic and efficiency to quickly and accurately control this unit.
The bi-directional IR extension function supports full frequency range from 38KHz up to 56KHz. Furthermore, the distance between the emitter head and the IR port on the unit may be extended to provide users a flexible and easy way in IR control system installation (maximum 3 meters IR cable can be purchased separately).
EVBMN-1492X Serial extension, the Full-Duplex data communication, can be selected thru the RS 232 slide switch at the rear panel of the unit for two-way communication between the Repeater device, the transmitter, and the receiver unit ( Tx -> Repeater -> Rx). The serial communication can be extended up to 70~100m via Receiver unit (depends on model) connected.
Features
- Allows Auto Switch from 4 Video Inputs and Sending the Video to Both the Local Display and the Remote Display ( HDBaseT EXT. )
- Accepts HDBaseT Video Input to Further Increase The Extension Range ( HDBaseT Repeater )
- Auto Switch Topology Eliminates Learning Procedure for the First-Time Users
- HDBaseT Uncompressed Video Extension Ensures Crystal Clear Image and Low Latency
- Video Inputs Support Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
- HDCP 1.4 Compliance Ensures Uninterrupted HD and UHD Video Playback
- EDID Management ( Audio/Video ) Ensures Display Compatibility
- Bidirectional Serial Extension with Selected Routing Allows for Extensive Control Applications
- LAN Extension Simplifies Cabling
- IR Extension Empowers Control of Source / Display
- Ideal For : Office, Hubble Room, Board Room, SOHO, Smart Classroom

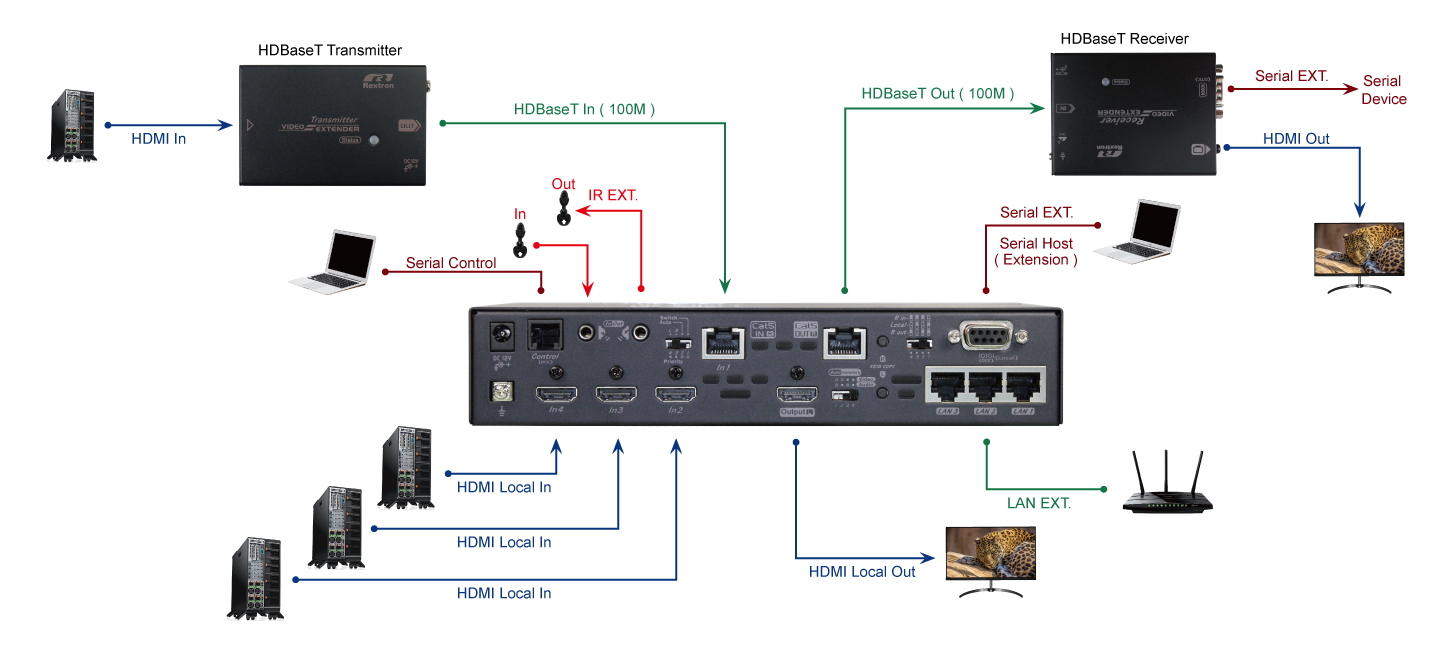

Connection Scenario
