USB Switcher, KM Switch with USB HID, USB 3.0, USB Audio, Analog Audio, and Hotkey Switching, Mouse Roaming function, USW-KM314
USB Switcher, USW-KM314, allows user to share one set of keyboard, mouse, Audio, and USB peripherals among 4 USB Computers. Simply press one button or issuing hotkey commands to select your desired PC for access control.
A unique tracking system enables the USB devices to be operated independently or concurrently. For example, USB tracking function allows USB switcher (KM Switch) users to decide whether or not the USB devices (USB Flash Drive, Printer, and Scanner) switching follows the PC ports switching. Dedicated USB 3.0 ports designed on the front and rear side of the USB switcher unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease. It is useful if you want to have files transferring from one particular computer while operating another computer. USW-KM314, USB Switcher, The Real-time USB HID ports give you amazing switching experience and the USB 3.0 ports provide excellent I/O speed.
Audio function allows USB Switcher (KM Switch) users to decide whether or not the audio ports switching follows the USB Computer ports switching. It is useful if you want to listen to audio signals from one particular audio port while operating another computer.
Mouse Roaming Functionality with Flexible Preset Screen Layout
The Mouse Roaming Switching Function allows users to switch among computers by moving the mouse cursor across the screen borders which is a more effective and modern way of computer switching. Users can easily switch the PC ports by moving the mouse cursor crossing the border of monitors smoothly and seamlessly, which allows users to switch the Keyboard, Mouse, Audio, and USB devices to another PC without hotkey or button pressing.
NOTE: 4 preset screen layouts are available for 1 x 4, 2 x 2, 4 x 1 or 1+3 Video Wall setup.
Rextron's KM switch with USB Hub supports not only keyboard mouse operation but also USB 3.0 peripherals sharing. USB HID ports support Mouse Absolute Coordinate Technology enables seamless switch among PCs and adapts to all kinds of Mouse Resolution. The 4 Ports USB Switcher is a compact size pure hardware solution plug-and-play system without any driver or software installation supporting most of the mainstream operating systems, such as Windows, Mac, and Linux. It simply reduces redundant cables and encourages a neat working environment.
Specifications:
Model Name | USW-KM314 |
Computer/Server Ports (input) | USB 3.2 Gen 1 Type B x 4
USB Audio Analog in x1
Audio in x 4 |
Console Ports (output) | USB 3.2 Gen 1 Type A x 2 (Front & Rear)
USB Type A x 3 (USB HID)
USB Audio Analog out x1
Audio out x 1 |
Push Buttons | 4 (For Selection) |
LED Indicator
(Power / Status) | 4 Computer Selected LED, (Red)
4 Computer Ready LED, (Blue) |
Compatibility | USB 3.2 Gen 1/ USB 2.0 / 1.1 |
Enclosure | Metal |
Power Supply | DC 9~12V |
H x W x D (mm) | 34 x 220 x 130 |
Weight (g) | 850 |
Rextron International, Inc., founded in 1998, is a leading company in IT fields and has invested a great amount of time and capital in developing new and advanced technology which covers:
- KVM Switches : 8K Video, Multi View, USB-C, USB 3.2 Gen 2 (10G), Mouse Roaming
- KVM / AV Extenders : 4K Matrix Switch, 12G SDI, Over CAT-X / Fiber, Wall Plate / Desktop
- Pro-A/V Products : 8K / 4K Matrices, Audio Insert / Breakout, 8K / 4K Video Converters
The OEM/ODM business tailored to customers' need is welcomed at Rextron.
Highlighted Features
- Allow 4 Computers to Share USB Peripherals( USB HID x 3 + USB 3.2 Gen 1 x 2 )
- Mouse Roaming functionality makes perfect operation experience by simply moving mouse cursor across screen border selecting the previous /next PC
- Flexible Preset Screen Layout of 1 x 4, 2 x 2, 1 + 3 or 4 x 1.
- Support Keyboard and Mouse Plug-n-play without Drivers
- Multiple Control Methods Enable Smooth Switch
- Front Panel Push Button Control
- Mouse Roaming Control
- Hotkey Control
- Support Windows, No Software Required
- Allow Usage of Different Versions of Windows Simultaneously
- Grant Access to Full Processing Power of 4 PCs Simultaneously ( Perfect For Massive Calculations )
- Front USB Port Design for Easy Access
- Mouse Absolute Coordinate Technology Enables Seamless Switch among PCs and Adapts to All Kinds of Mouse Sensitivity
- Support USB Audio

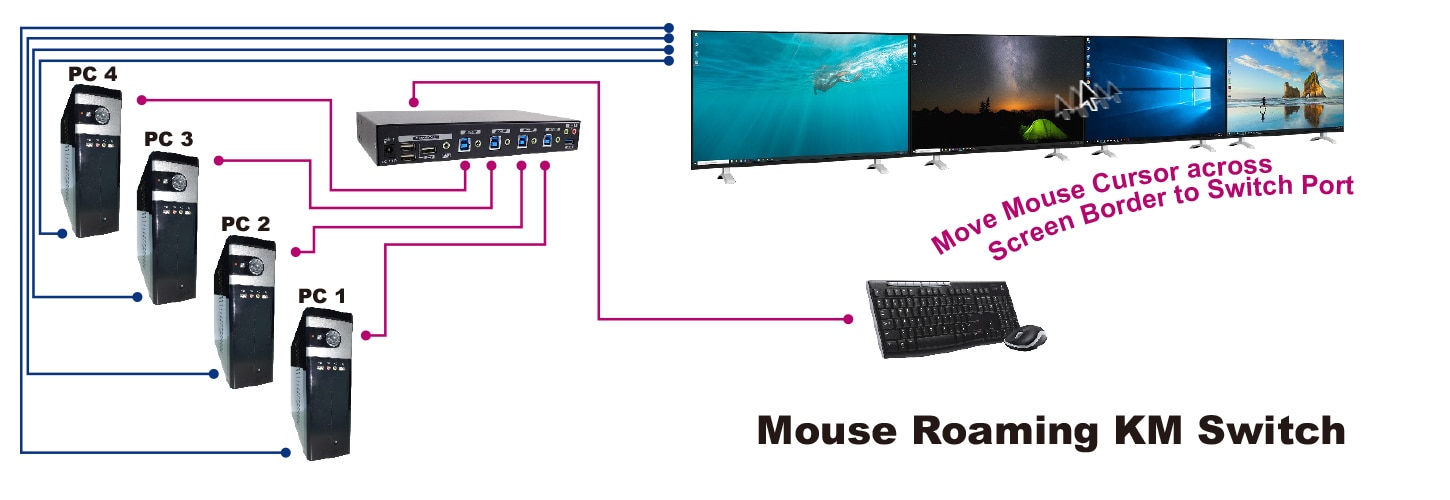

Connection Diagram
Product Details
Rextron's USW-KM314 is a 4-Port Multi-View KM Switch with USB 3.2 Gen 1, Mouse Roaming, USB Audio Function and Hotkey Control designed to switch 4 computers by moving mouse and enable to be controlled by one set of keyboard, mouse and supports USB 3.2 Gen 1 devices.
Unlike traditional KVM switch, USW-KM314 removes video hotkey switching function so that user can enjoy the benefit of the latest low cost displays, and the video resolution won't be limited by this Multi-View KM switch.
The mouse roaming Multi-View switching function allows users to switch among computers by moving the mouse cursor across screen borders which is a more effective and modern way of computer switching. USW-KM314 is a pure hardware design, built-in 4 preset screen layout, USB-Audio support, no software or driver required, compatible with Most of Windows and Mac system. It is the best solution for office, Video Wall, Server Room, Control Room and SOHO application. Please visit our website at www.rextron.com for the related products' information in detail.
