2 Ports 4K@144 DisplayPort KVM Switch with USB Type-C 3.2 Gen 2, Audio switching, PAAG-ET3112B
PAAG-ET3112B, 4K@144 DisplayPort KVM, lets you control two DisplayPort computers with one set of USB Keyboard, Mouse, monitor, and USB Type-C Devices. You can easily switch 2 computers using the user friendly hotkey control function or the push button of the KVM switch. Real-time USB HID ports provide you amazing seamless HID switching experience while the USB 3.2 Gen 2 ports offer excellent 10Gbps I/O speed.
PAAG-ET3112B, 4K@144 DisplayPort KVM, A unique tracking system enables the Audio devices to be operated independently or concurrently. For example, Audio tracking function allows KVM switch users to decide whether or not the audio switching follows the computer switching. It is useful if you want to listen to audio signals from one particular computer while operating the other computers.
The First 8K KVM Switch built-in USB 3.2 Gen 2 Function
This 8K Type-C DisplayPort 1.4 KVM Switch is USB Super Speed+ supported, offers 10 Gbps data transmission speed, allows computers to share multiple USB peripherals. The Real-time USB HID ports give you amazing switching experience and USB 3.2 Gen 2 ports provide excellent I/O speed.
Rextron 8K KVM switch supports resolutions 8K 60Hz (4:4:4)(DSC), 5K 120Hz, 4K 144 Hz, or 4K 120Hz, compliant with HDCP specifications, and supports EDID pass-through on 16:9, 21:9, or 32:9 monitors. It can satisfy every user to complete his projects, enjoy home entertainment, or playing video games with vivid visuals, accurate color, and sharp details. This 8K KVM Switch offers total bandwidth of up to 32.4 Gbps for video and data transmission, allows two computers to share multiple USB peripherals.
PAAG-ET3112B is Windows, Mac, Linux, and Chrome OS supported, DisplayPort 1.4 compliant, capable of Deep Color; Dolby True HD, DTS-HD Master, and stereo audio; RGB, YCbCr (4:4:4), and YCbCr (4:2:0).
In addition to 8K feature, PAAG-ET3112B adopts advanced adaptive sync technology like Free Sync, G-Sync, and VRR, which allows users to adopt the display’s refresh rate based on the actual video frequency. This technology prevents the image tearing in the environment of a high-frame-rate gaming display, and can make video game players enjoy smooth and seamless on-the-spot movement through their games.
Rextron DisplayPort 1.4 KVM switch with USB Hub supports keyboard-mouse operation as well as USB 3.2 Gen 2 peripherals sharing without any software or driver installation. Dedicated USB 3.2 Gen 2 ports design on the front and rear side of the DisplayPort 1.4 KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.
What is USB 3.2 Gen 2 ? Where to use ?
The USB standards would be a challenge for computer users to understand, especially after many USB Gen evolutions. We can quite often see USB 3.2 Gen 1 and Gen 2 on the brochure of electronic products. To help users to easily understand the details of USB 3.2 Gen 1 and USB 3.2 Gen 2, we hereby introduce the informative spreadsheet to you as the following.
USB 3.0 standard released in 2008, the third revision to the USB standard, had a significant improvement from USB 2.0 with transfer speeds of 480 Mbps. Since then, computer market has been committed to USB 3.0 regulation and develops a series of SuperSpeed/ SuperSpeed+ specifications, known as USB 3.1 and USB 3.2.
USB 3.2 preserves the existing USB 3.1 SuperSpeed and SuperSpeed+ data modes, introduces multi-lane operation over existing wires for bandwidth increasing, and brings about the new specifications of USB 3.2 Gen 1 and USB 3.2 Gen 2.
| USB 3.2 Gen. 1x1 | USB 3.2 Gen. 2x1 | USB 3.2 Gen. 2x2 |
Transfer Speed | 5 Gbps | 10 Gbps | 20 Gbps |
Also known as | USB 3.1 Gen 1,
USB 3.0 | USB3.2 Gen 2 | N/A |
Interface Option | USB-A, USB-C,
Micro USB | USB-A, USB-C,
Micro USB | USB-C |
What does DisplayPort 1.4 stand for ? Does DisplayPort 1.4 support 8K resolution ?
DisplayPort 1.4 (hereinafter referred to as DP 1.4) supports 8K resolution the latest specification released by VESA. Comparing the features and regulations of DP 1.2 with DP 1.4, DP 1.4 supports Display Stream Compression (DSC) function delivering higher screen resolutions and frequency in bandwidth, and deeper color saturation. In addition to DSC technology, DP 1.4 involves High Dynamic Range data packet (HDR transport) that can improve the luminosity distribution and display contrast.
Characteristic | DisplayPort 1.2 | DisplayPort 1.4 |
Max. Bandwidth | 21.6 Gbps | 32.4 Gbps |
Max. Resolution | 3840 x 2160@60Hz (4:4:4)
4096 x 2160@60Hz (4:4:4) | 7680 x 4320 @ 60Hz (4:4:4) ( DSC )
7680 x 4320 @ 60Hz (4:2:0)
5120 x 2880 @ 60Hz (4:4:4)
5120 x 1440 @ 120Hz (4:4:4)
3840 x 2160 @ 144Hz (4:4:4)
3840 x 2160 @ 120Hz (4:4:4)
2560 x 1440 @ 144Hz (4:4:4)
2560 x 1440 @ 120Hz (4:4:4)
2048 × 2048 @ 60 Hz (4:4:4) (2K x 2K) |
Audio Format
| 8-channel, 192KHz
| 32-channel, 1536 KHz
|
Dynamic HDR
| No
| Yes
|
Audio Format
| Yes
| Yes
|
Rextron provides a series of 8K DisplayPort 1.4 KVM switch products with 2 or 4 ports, Dual Monitors, Triple Monitors ,and Quad Monitors. These products are compliant with HDCP specifications and support EDID pass-through to 16:9, 21:9, or 32:9 monitors with vivid visuals sharp details and accurate color presentation that is beneficial for professional gamer, content creators, graphic designers, and CAD and CAM designers.
Leading OEM/ODM DisplayPort 1.4 KVM and USB 3.2 Gen 2 KVM Manufacturer
On the cutting edge of IT field, with ample OEM/ODM experience, mature manufacture capability and R&D resource, Rextron Integrated the factory & sub-contractors, brought ideas to reality, and turned concept into the viable IT related products ready for the market.
For years, we kept pace with and provided various design houses and OEM customers with quick and reliable manufacturing and serving. These favorable products including KVM extender, Video extender and USB KVM switch have gained international acclaim and are now widely used in businesses, factories, industrial operations, militaries, government installations, schools and private residences. As an ISO9001:2015 registered company, quality assurance is our first priority. Rextron keeps strict manufacturing process constantly and source more RoHS and REACH compliant materials from all over the world.
What is KVM Switch ?
KVM is stand for “Keyboard, Video, and Mouse”. KVM allows you to access multiple computers or servers via only one set of Keyboard, Mouse and Monitor. Computers may be selected by pressing the KVM push button directly, entering a hotkey or activating OSD window. KVM switch is a compact size pure hardware solution plug-and-play system without any driver or software installation. It reduces redundant cables and creates a neat working environment, and also saves you space, time, equipment, and money.
Rextron International, Inc., founded in 1998, is a leading company in IT fields and has invested a great amount of time and capital in developing new and advanced technology which covers:
- KVM Switches : 8K Video, Multi View, USB-C, USB 3.2 Gen 2 (10G), Mouse Roaming
- KVM / AV Extenders : 4K Matrix Switch, 12G SDI, Over CAT-X / Fiber, Wall Plate / Desktop
- Pro-A/V Products : 8K / 4K Matrices, Audio Insert / Breakout, 8K / 4K Video Converters
The OEM/ODM business tailored to customers' need is welcomed at Rextron.
Highlighted Features
- Allows 2 Computers Share 1 Set of KVM Console
- DisplayPort 1.4 Video Supports Most Popular Resolutions Up to 4K 120Hz, 4K 144Hz, 5K 120Hz, and 8K 60Hz (4:4:4) ( DSC )
- HDR10 Support for Best Visual Experience
- HDCP 2.2 and HDCP 1.4 Compliance
- Plug-and-Play without Software or Driver
- Front and Rear USB Ports Allow Easy Access
- USB 3.2 Gen 1 Provides Excellent 5Gbps Speed
- Suitable Applications Includes Office, SOHO, Gaming, Industrial Control, and Video Wall Switching
DisplayPort 1.4 Standard Featurs Compliance :- - VRR ( Variable Refresh Rate ) for Gaming
- - DSC ( Display Stream Compression ) Allows Even Higher Resolutions
- - HFR ( High-Frame-Rate ) Allows Best Performance in High Dynamic Videos
- - MST ( Multi-Stream Technology ) Allows Expansion to More Monitor Numbers
2 Flexible Switching Control Methods :- - Front Push Buttons
- - Hotkey Control
Product Details

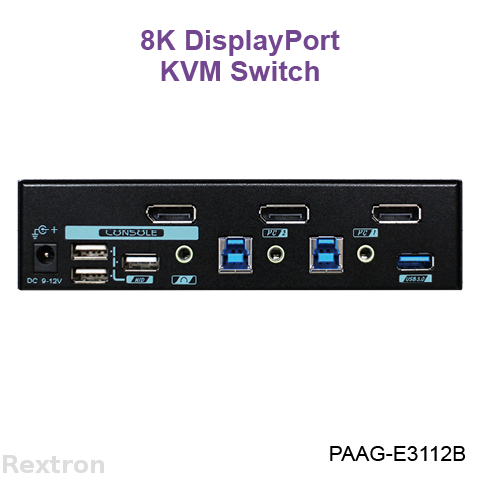

Rextron PAAG-E3112B is a 2 Ports 8K DisplayPort 1.4 KVM Switch which controls and switches two 8K computers by one keyboard or one mouse and then displays it to the monitor. It supports resolution up to 8K 60Hz with 3.5mm stereo analog audio and mic, 7.1 channels digital audio built-in. The USB 3.2 Gen. 1 design can be compatible with any device requirements.
The 2 Ports 8K DisplayPort 1.4 KVM Switch‘s USB 3.2 Gen. 1 port located at the front and rear panel of the unit respectively is more convenient for the users when plugging continuously or temporary. The USB HUB supports MTT technology, ensuring best available bandwidth for both ports.
The 2 Ports 8K DisplayPort 1.4 KVM Switch allows two computers to share multiple USB peripherals. With its simple plug and play design, there is no software and driver required when installing. We also offer a series of 2 Ports 8K DisplayPort 1.4 KVM Switch to meet any requirements.
The 2 Ports 8K DisplayPort 1.4 KVM Switch is the best solution for office, IT industry, video gaming, medical display, and digital signage.
Please visit Rextron’s website at www.rextron.com for the related products in detail.
Connection Sceanrio
